Deskripsi
UPS Inverter Sine Wave 10000 Watt Luminous merupakan produk inverter dengan kemampuan backup dan suplai daya berkapasitas 10 KVA, sangat cocok untuk backup daya bagi tempat-tempat bisnis.
UPS Inverter Sine Wave 10000 Watt Luminous, Spesifikasi Teknis

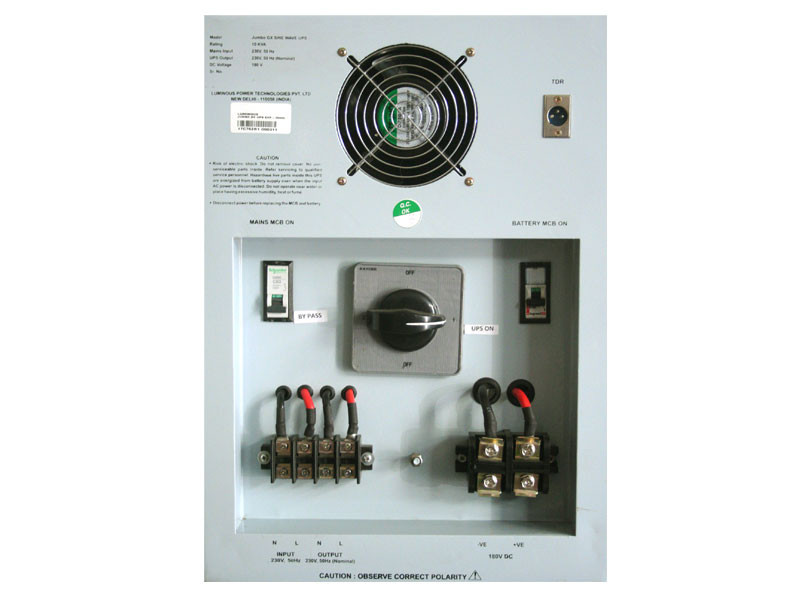

Model : Luminous Cruze Sine Wave Inverter
Type : 1-Phase Inverter
Capacity : 10000VA/180V
Undervoltage Input (Regulated UPS Mode) : 1805V
Undervoltage Restoration Input (Regulated UPS Mode) : 1855V
Overvoltage Input (Regulated UPS Mode) : 2605V
Overvoltage Restoration Input (Regulated UPS Mode) : 2555V
Undervoltage Input (Unregulated UPS Mode) : 14010V
Undervoltage Restoration Input (Unregulated UPS Mode) : 15010V
Overvoltage Input (Unregulated UPS Mode) : 28010V
Overvoltage Restoration Input (Unregulated UPS Mode) : 27010V
Voltage Output (UPS Mode) : Sine Wave 230V (Nominal)
Voltage Output (Mains Mode) : 230/50Hz. Nominal
Frequency Output (UPS Mode) : 50Hz, 1%
Frequency Output (Mains Mode) : Same as input (45-55Hz)
Output Overload : > 110%
Output Transfer Time (typical a.s.) : 10-20 ms
Battery Type : 120Ah-150Ah Lead Acid Type
Battery Number : 15
Battery Typical Recharge Time : 10-12 Hrs
Battery Protection Low Battery, : Reverse Polarity
Size (L x W x H cm) : 62.5 x 34.5 x 51
Weight (Kg) : 125
Warranty : 1 Tahun
Beban Lama Backup (80% bat, VRLA 150AH)
| <10% | 11 jam> | |
| 1000W | 19 jam 26 menit | |
| 2000W | 9 jam 43 menit | |
| 3000W | 6 jam 28 menit | |
| 4000W | 4 jam 51 menit | |
| 5000W | 3 jam 53 menit | |
| 6000W | 3 jam 14 menit | |
| 7000W | 2 jam 46 menit | |
| 8000W | 2 jam 25 menit | maksimum load |
